Plastic to Fuel Machine

Beston waste plastic to fuel machine with its developed technology, perfect quality and the lofty prospect has already been widely used in some foreign countries and is highly praised by foreigners. Because the waste pyrolysis machine can not only deal with the problem of waste plastic but also protect the environment, turn waste into wealth and benefit to humanity.

Plastic to Fuel Machine
BLL-30 Waste Plastic to Fuel Machine in South Africa in 2017

Types of Beston Waste Plastic to Fuel Machine for Sale

Beston has made 4 models of waste plastic to fuel machines for saleThese machines can be divided into three working methods: batch, semi-continuous and full-continuous. Different kinds of machines have their special features and fictions. Here are more parameters for your reference.

Item Details
Model BLJ-6 BLJ-10 BLL-16 BLL-30
Daily Capacity 6T 10T 15-20T 30T
Working Method Batch Semi-Continuous Fully Continuous
Raw Materials Waste Plastic, Tyre, Rubber, Oil Sludge, Medical Waste
Reactor Size D2.2*L6.0m D2.6*L6.6m D2.8*L7.1m L12.5*W2.2*H2.5m
Pattern Horizontal & Rotary
Heating Materials Charcoal, Wood, Fuel Oil, Natural Gas, LPG, etc.
Total Power 24kw/h 30kw/h 54kw/h 53.6kw/h
Floor Area (L*W*H) 20*10*10m 25*15*10m 25*15*10m 33*15*10m
Operating Pressure Normal Pressure Constant Pressure
Cooling Method Water Cooling
Service Life 5-8 Years

Waste plastic contains a little water in normal condition, and it must effluence the output. Therefore, waste plastic will be through a dryer to steam the moisture. If waste plastic is too big, we need employ a crusher to make big waste plastic into small pieces.

Main Equipment of Waste Plastic to Fuel Oil Conversion Plant

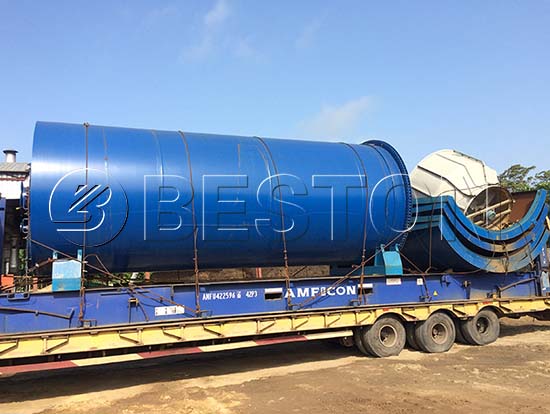

1. Reactor is the most important part of waste plastic into oil machine with high temperature resistance and good stability, and it is to convert waste plastic to fuel. In the process of conversion, there will also be both oil and carbon black generating.

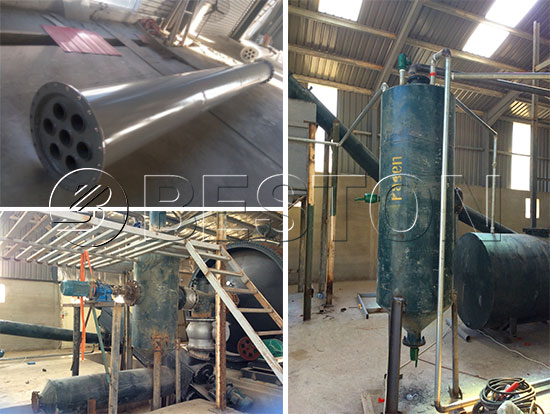

2. Manifold is equipped with the machine that can convert plastic into oil. It can separate heavy particles, gas oil and light oil. There are draining valves on the bottom of manifold to drain heavy particals. Light oil and gas oil are discharged into condenser by the out of tube on the top.

3. Oil condenser is a key component of plastic to oil machine for sale, Its fictions are to exchange heat and cool the high temperature oil gas that is from manifold. Outside the straw, the cold water absorbs the heat of oil gas and liquefies it.

Waste Plastic to Fuel Conversion Machine
Plastic to Fuel Conversion Machine in Indonesia

4. Hydroseal is to remove sulfur and impurity and purify non-flammable gas. In the water tower, the water can be used about 7 days. The most important fictions is to prevent gun back to fire and ensure the safety of production.

5. Dust removal system in the waste plastic to oil conversion machine is to reduce the temperature of smoke and dust. The cooled smoke and dust is introduced to water tank and then through three steps: the impacting of water, the adsorption of Boer magnetic and water spray, which can reach the standard of emission.

How to Convert Waste Plastic into Fuel?

1. Pyrolysis: the plastic pyrolysis reacts in the reactor, in which there is vacuum with high temperature and high pressure. It often needs 8-10 hours. The reactor whirls with double helix. The waste plastic will release the combustible gas and melt into oil gas and liquid carbon black. At this time, the temperature of reactor can reach about 350℃.

2. Cooling: it needs 2-3 hours and aims to get oil and improve the generation of fuel. The waste plastic to fuel oil machine is equipped with the flue tube condenser, which has large cooling areas to cool oil gas, so you can get much fuel oil in short time. It really enhances the efficiency.

Plastic to Fuel Machine
 3D Drawing of Plastic into Oil Machine

3. Discharging: it needs about 2-3 hours. Our plastic to diesel machine will discharge automatically because it is installed an automatic discharging system. The liquid carbon black will flow into slag pot and the oil gas will get into manifold. At this moment, the temperature is about 100℃ and it also needs 2-3 hours. the whole process id sealed.

4. De-dusting: it can reduce pollution and protect human beings’ health. In fact, it also corresponds to the policy of national protection-environment. The plastic to oil machine for sale has four-layers dust removal systems, and they are washing, magnetic adsorption, activated carbon and water spray. By them, the concentration of exhaust gas can be decreased to reach European standard of emission.

Applications of Final Products From Beston Waste Plastic to Fuel Plant

* Oil: it can be used as fuel or reprocessed into diesel or gasoline by Beston oil distillation plants. Furthermore, we can burn it in the industry or sale it.

* Carbon black: the carbon black can be sold directly by you or made into carbon brick by briquetting plants. Moreover, you can reprocess it into high-quality carbon by carbon brick grinding machines.

End Products
End Products from Waste Plastic into Fuel Machine

* Combustible gas: it can be as fuel to heat the reactor or be recycled to use in industry or agriculture.

Advantages of Plastic to Fuel Plant for Sale

Safety

1. The automatic plastic pyrolysis plant is equipped with casing, pressure gauges, thermometers, vacuum pumps, safety valves, emergency vent valves, explosion-proof valves, automatic alarming system and automatic slag system and so on, all of which can guarantee that everything goes well.

2. The casing installed outside the reactor can protect people’s body from burn and by the way extend the life of the reactor.

plastic to fuel Plant
Beston Waste Plastic to Fuel Machine

3. The pressure gauges and thermometers show the pressure and temperature at any time to avoid happening something.

In a word, if there is something wrong, the automatic alarming system will alert you in the first time.

3-H

* High output.

You can use the combustible gas to reheat the reactor to save energy and raise yield; the oil condenser of plastic to oil machine has large areas to improve the cooling efficiency and the rate of production; you can also add chemical catalyst supplied by us to speed up the reaction to increase the output by 20%.

* High quality

The waste plastic to fuel machine has got the CE, ISO, SGS certifications and uses automatic submerged arc welding technology and ultrasonic non-destructive testing. All the materials we use are stainless steel with high temperature resistant and corrosion resistant.

* High efficiency

The waste plastic pyrolysis plant reactor can continue working; feeding while discharging; the efficiency of continuous plastic to oil machine produced by us is superior to all kinds of machines.

Low Price

1. Beston waste plastic to fuel machine price is reasonable, because of the full services, even the turn-key project, one-stop service and so on.

2. The plastic to fuel plant mainly makes money and creates energy for customers. Therefore, the cost will come back soon.

3. The plant has high yield, long -service life and lower noise. It can continue working and creating treasure for you.

Environmental-protection:

Romanian Visited the Beston Factory
Romanian Visited the Beston Factory On March 16th, 2017
BLL-6 Waste Plastic to Fuel Oil Machin

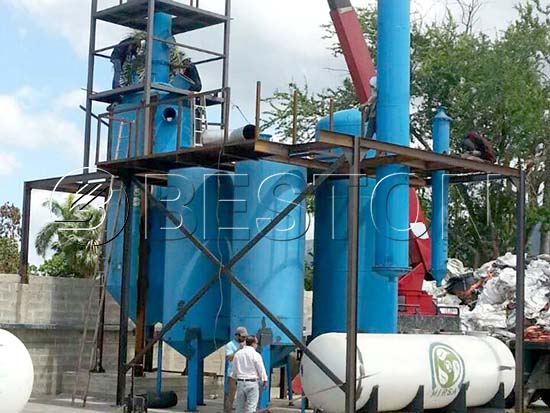

BLJ-6 Waste Plastic to Fuel Oil Machine in Dominica

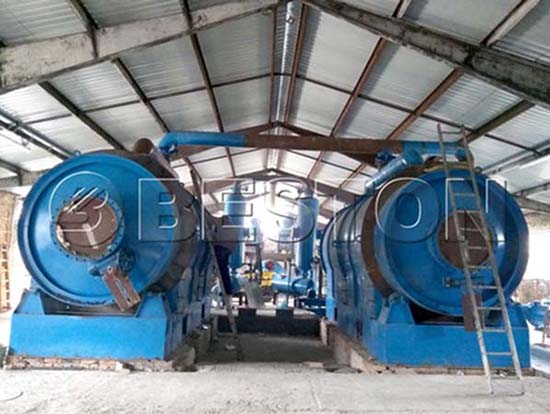

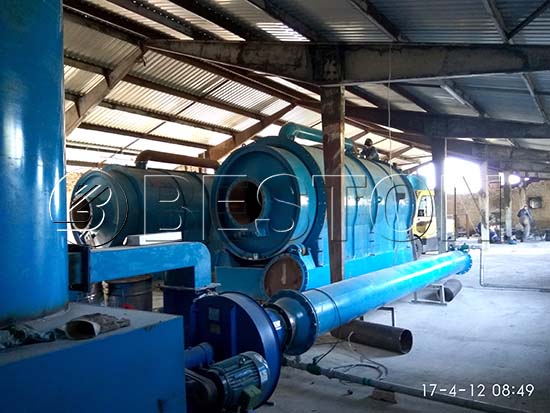

Hungarian Customers
Hungarian Customers Visited Beston Production Workshop

The entire process is sealed and does not flow out any exhaust gas; the flue condenser can improve the effect of removing dust; the four-layer dust removal systems can purify exhaust gas in the reactor to reach the standard of emission; non-liquefied combustible gas was purified by hydroseal, and then heat main furnace.

Beston Machinery’ idea is to convert waste plastic into energy and make the world more beautiful. If you also want to live a happy life and make much money, the waste plastic to fuel machine for sale is the best choice for you. Let us take action quickly.

If you want to know more, please send an order.
